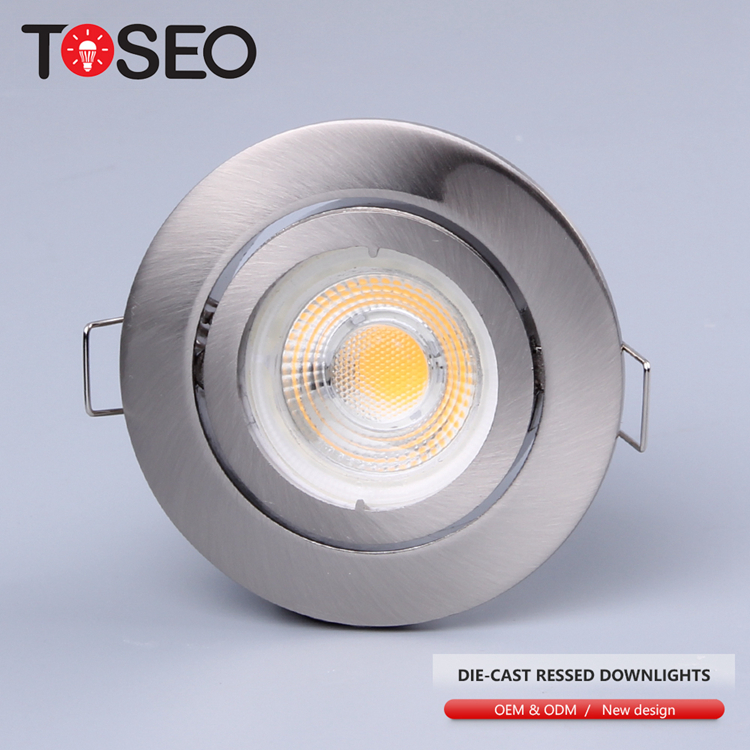

83mm Recessed LED Downlights Fittings Adjustable Die Cast Aluminum Material

Brand Name : TOSEO

Model Number : TS6186

Certification : CE, RoHS.

Place of Origin : Guangdong, China

MOQ : 300

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 45

Delivery Time : 45

Packaging Details : 80pcs per carton. Master carton size 47.5x42x28.5cm. Net weight 12kgs. Gross weight 14kgs.white inner box with brown cartons , customized packaging：white box with label or color box

Item type : Adjustable LED Recessed Lighting

Input voltage(v) : 12V/AC 220-240V

Ip rating : IP20

Lamp body material : Die-casting Zinc

Application : Hotel,Showroom,Restaurant,Home

Color : White/Black/Satin Nickel

MR16 halogen bulb : Max 35W

Warranty : 2 Year

Adjustable : YES

Average life span : 50000

GU10 halogen bulb : Max 50W

Installation method : Embeded

Contact Now

83mm Recessed Ceiling Spot Light Fittings AdjustableGu10 Downlight

Product Feature

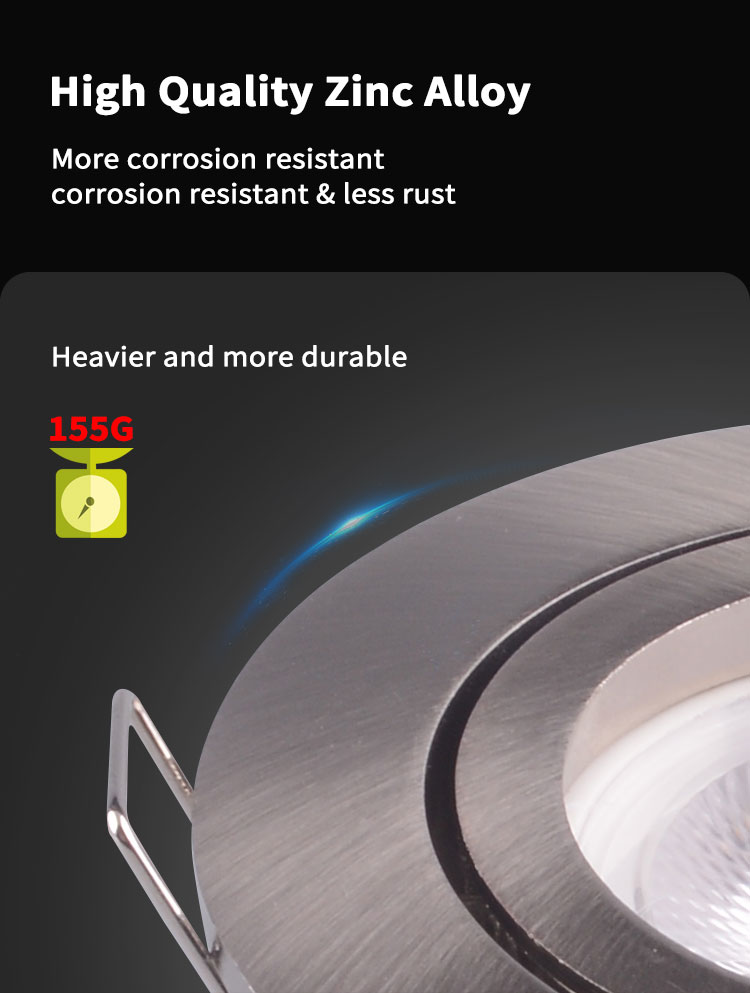

1. Material:Die-casting Zinc

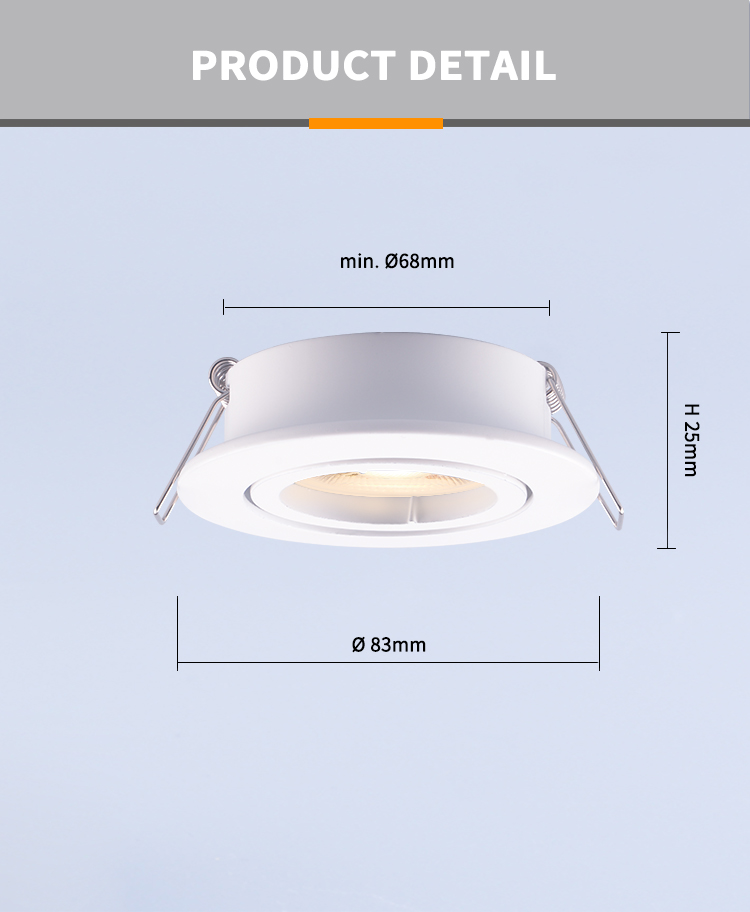

2. Diameter :83mm .
3. Cutting:70mm .

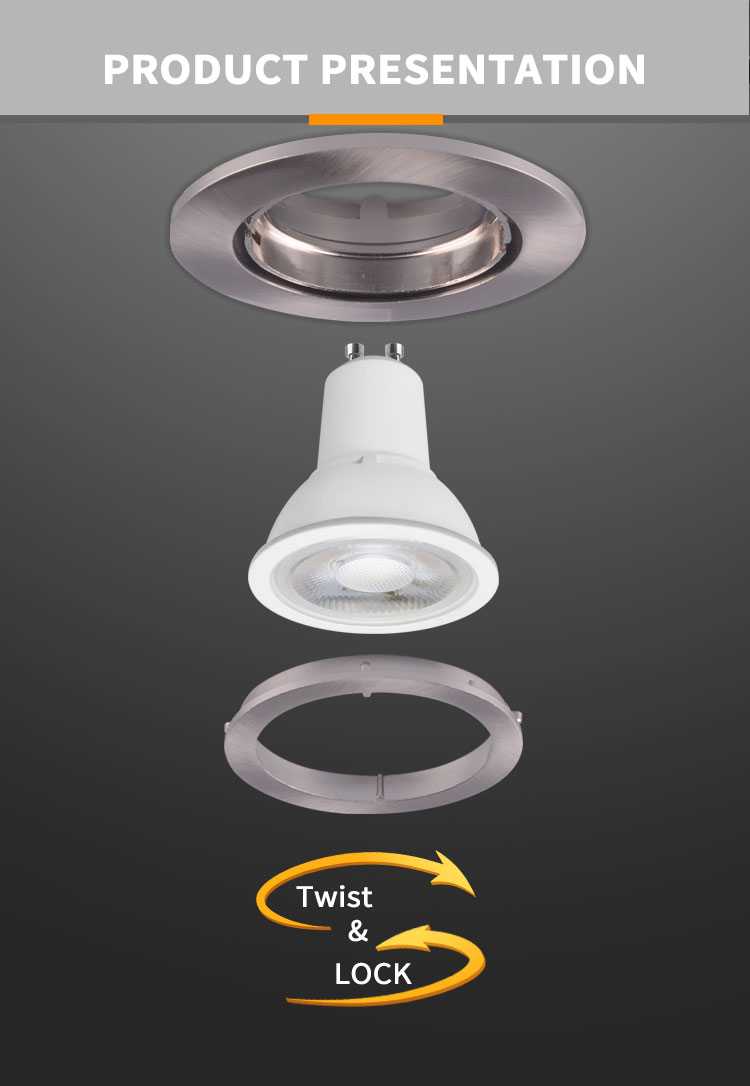

4. Lampholder: GU5.3/Gu10

5. The downlights Adjustable angle,you can swing the inner ring to adjust the angle of the light source as needed.
5. Downlight warranty is 2 years with lifespan of 50,000 hours..

Product specification

Style	Recessed Downlights
Material	Die-cast Aluminum
Dia	83mm
Cutting	70mm
Base type	GU5.3/GU10
Voltage	12V/AC 220V-240V
Model	TS6186
Warranty	2 years

Just For You

83mm Recessed LED Downlights Fittings Adjustable Die Cast Aluminum Material

Installation Notes

Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The wire must be passed VDE certification of three core cable, To reduce the risk of fire hazard.

3. It must be two-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.

4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.

5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.

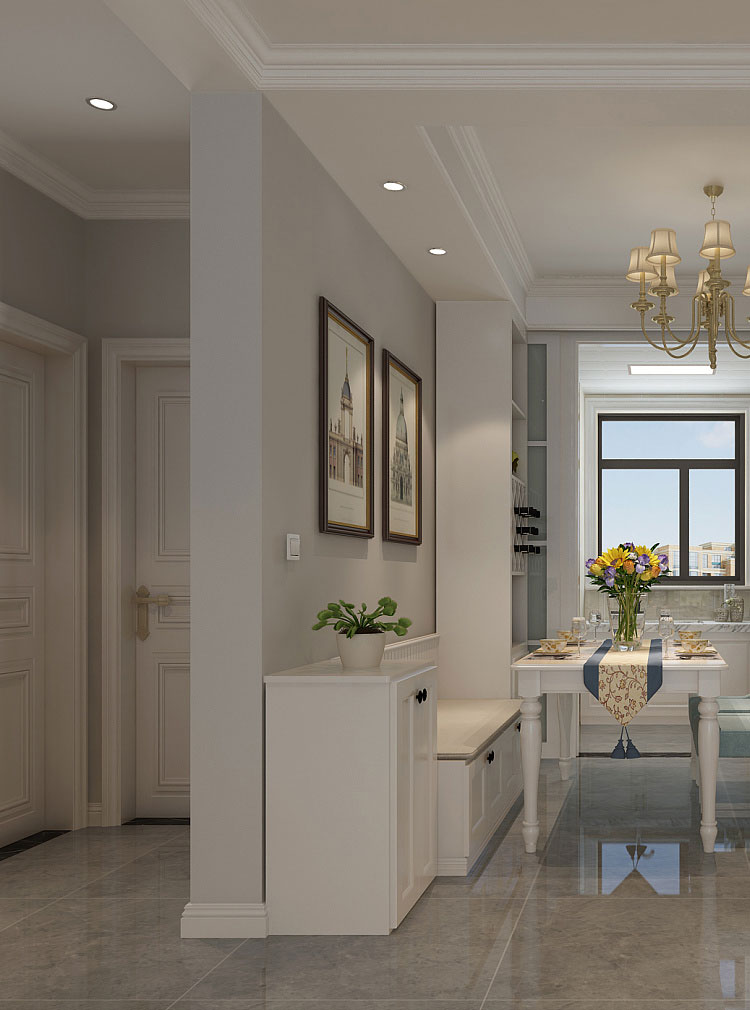

Applications:

Widely used in hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, , backlight and so on.

Certification

High Quality BBC Approval Standard BS476 IP65 Waterproof Anti Glare Fire-rated 11W COB WIFI Dimming LED TOSEO Customized Pure Aluminium Adjustable angle GU10 mr16 housing Surface Mounted Spotlight

FAQ

Q1. Can I have a sample order for led light?
 A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
 A: 5-7 days for Sample preparing ,45-60 working days for mass production.
Q3. Do you have any MOQ limit for led light order?
 A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
 A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
 A: Firstly let us know your requirements or application.
 Secondly We quote according to your requirements or our suggestions.
 Thirdly customer confirms the samples and places deposit for formal order.
 Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
 A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
 A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
 A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
